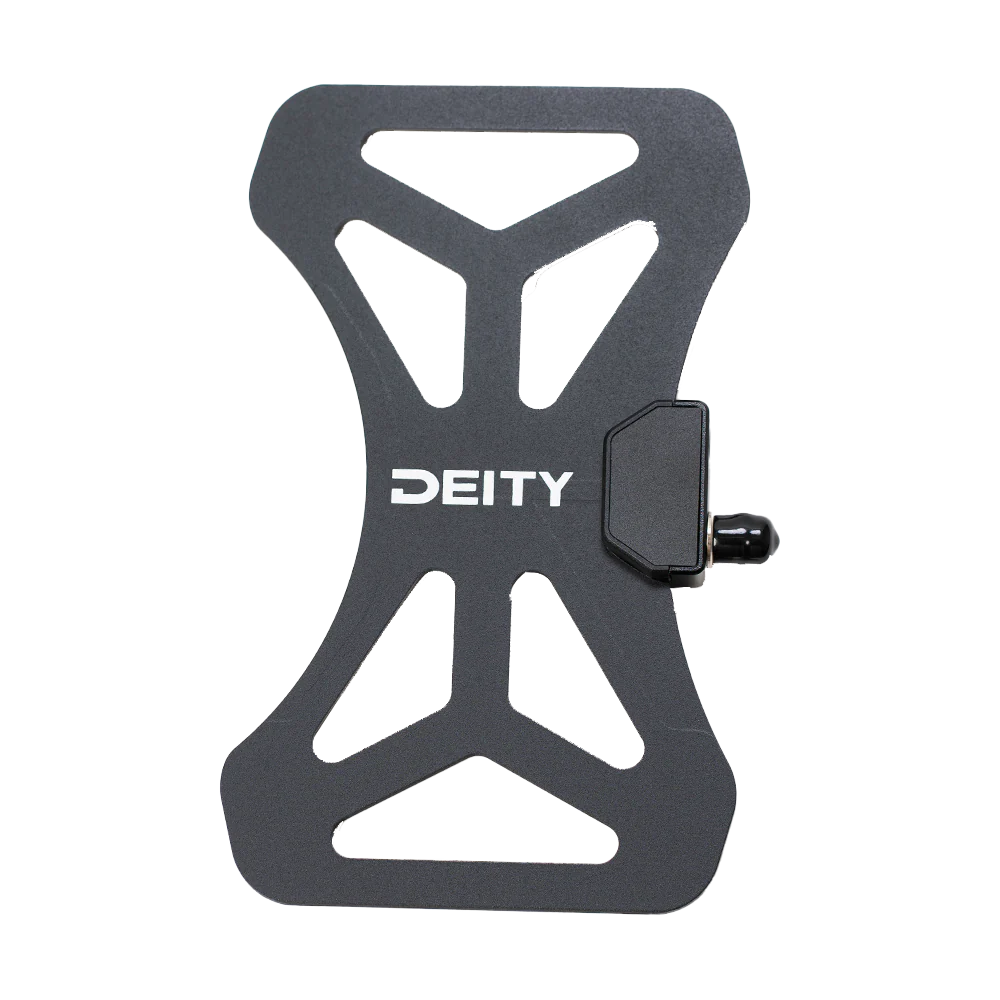

BF1 - Butterfly Antenna (470Mhz ~ 1GHz)

Ultra-Wideband Coverage: With a frequency range spanning from 470MHz to 1GHz, the BF1 ensures seamless transmission across a wide spectrum, allowing you to capture every nuance with clarity and precision. Boasting an average gain of +2.2dBi, the BF1 enhances signal reception, giving you a distinct advantage in capturing pristine audio in challenging environments.

Featherlight Construction: Weighing in as one of the lightest antennas in its class, the BF1 ensures effortless portability without compromising on durability or performance. Rated IP65, the BF1 is built to withstand the rigors of professional filmmaking, offering resistance against dust and water ingress, so you can focus on capturing the perfect shot without worrying about equipment failure.

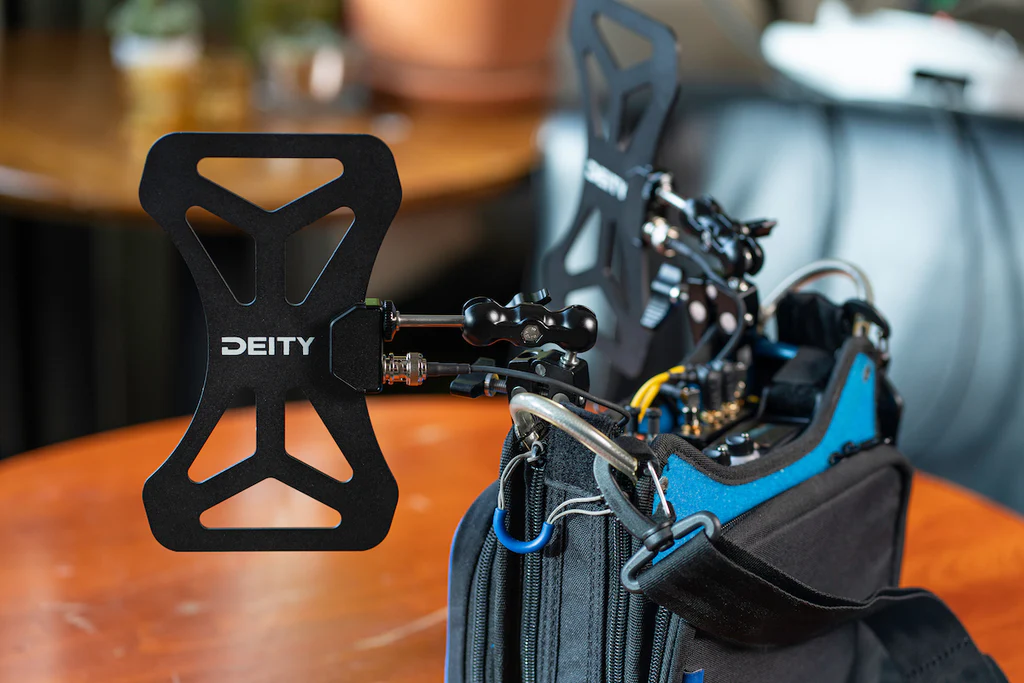

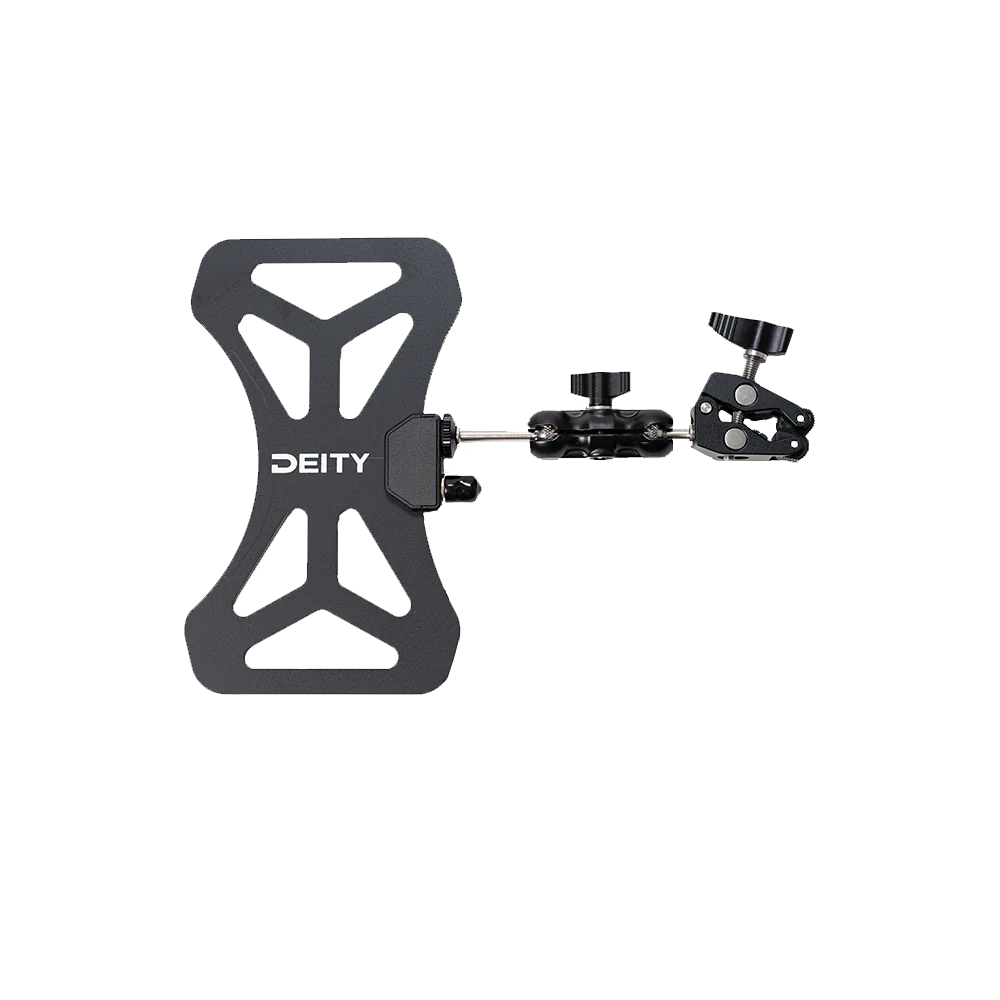

Precision Mounting: Equipped with a robust 1/4” 20-threaded metal mount and an articulating mounting arm, the BF1 offers flexible positioning options, allowing you to optimize signal reception with ease and precision.

Comprehensive Kit: Each BF1 kit includes a pair of antennas and all the necessary accessories, so you’re ready to tackle any production challenge immediately. The kit features 2 BNC to BNC cables and 2 BNC to Right Angle SMA cables, ensuring compatibility with a wide range of wireless systems so you can integrate seamlessly into your existing setup. The included neoprene carrying case provides secure storage and easy transport, ensuring your BF1 stays protected wherever your shoot takes you.

Specs:
• Antenna Type - Passive
• Frequency Range - 470MHz-1GHz

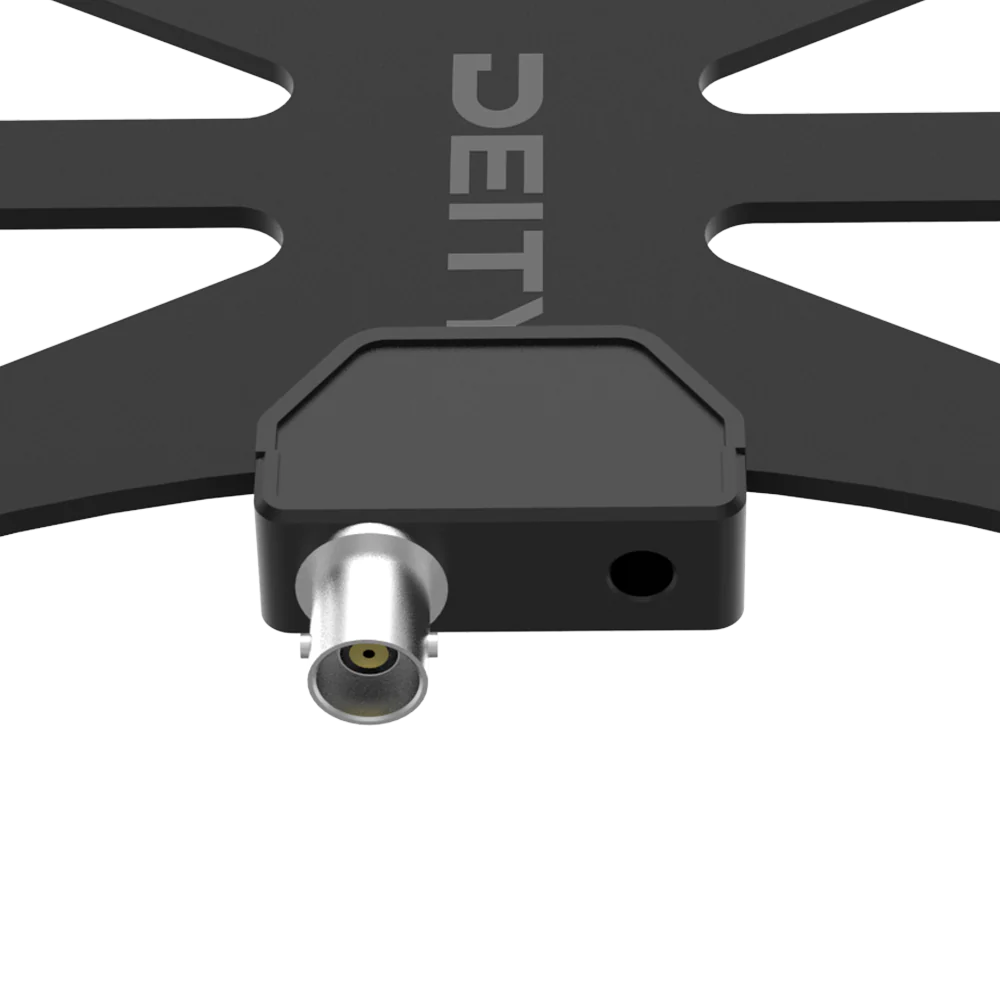

• RF Interface - BNC
• Input Impedance - 50 Ohms
• Standing Wave Ratio - <1.5 (550~750MHz)
• Gain - Ave +2.2dBi

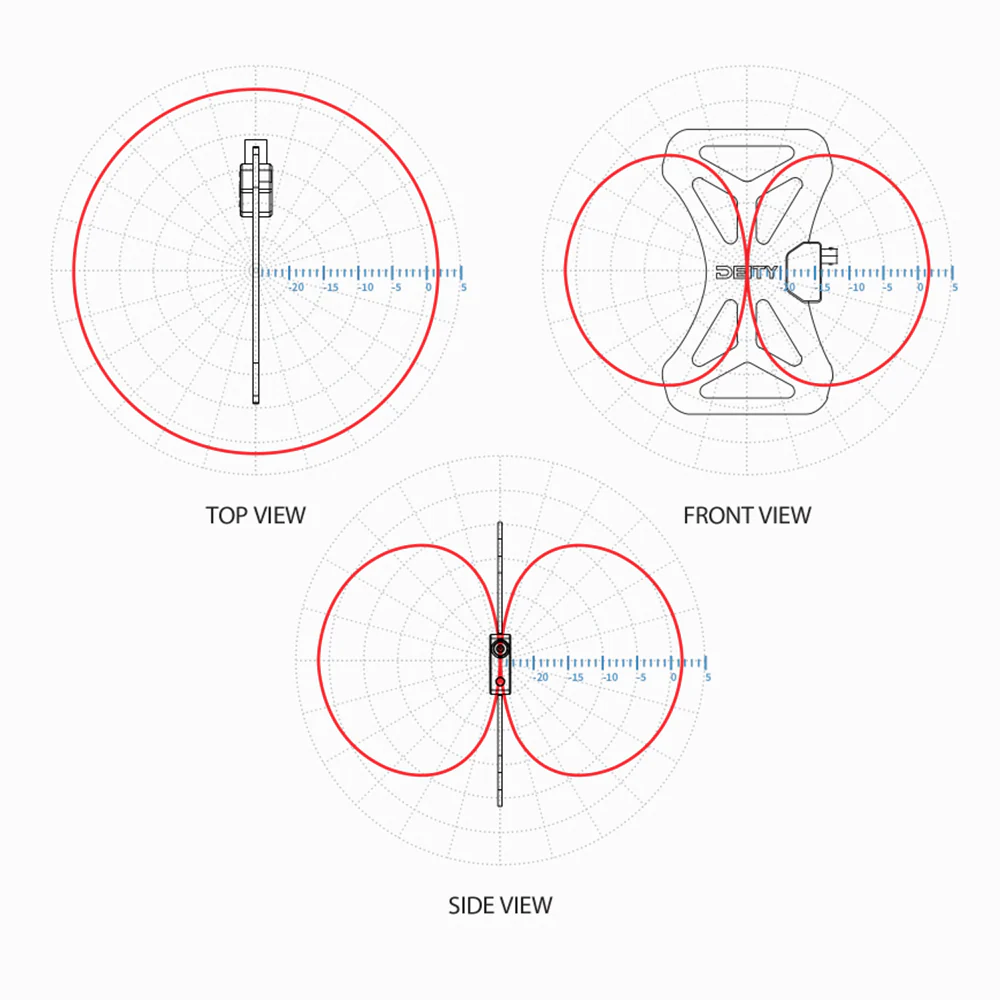

• Antenna Polarization - Linear
• Material - Composite Fiberglass
• Mount - 1/4" 20 Threaded Female
• Size - 190*118*14mm
• Weight - 95g (Antenna Only)

Including in the Box:
• 2x BF1 Antenna
• 2x Articulating mounting arm
• 2x BNC to BNC Cables
• 2x BNC to Right Angle SMA Cables
• 1x Carrying Case
